l Torque Range：69~50000 Nm
l Speed Range：0~600 rpm
l Diameter Range：210~1220 mm
l Cooling：Water cooling

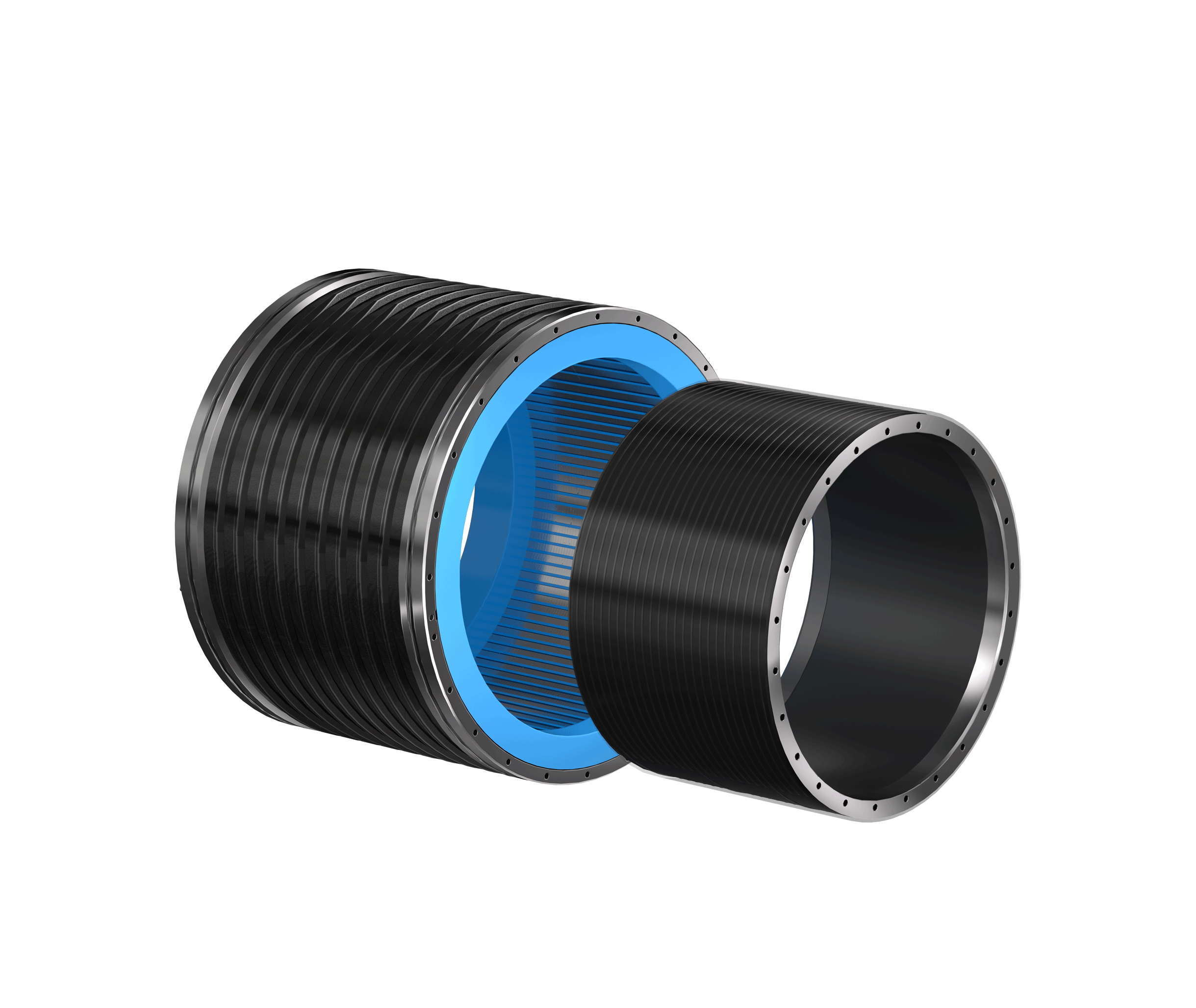

The XT series, through innovative coil arrangement technology, has significantly increased the slot fill rate, allowing the motor to achieve industry-leading levels of torque density.
Extreme space design
The motor features a compact structure with a frameless design that facilitates integration within the A-axis 、B-axis、C-axis, adapts to various space-constrained, high-torque demanding application scenarios, and simplifies installation and maintenance.
Reliable and durable
Utilizing advanced vacuum epoxy pouring techniques, complemented by a unique cooling structure design. This combination not only significantly enhances the motor's heat dissipation capabilities and insulation level but also greatly strengthens the structural stability of the motor, ensuring reliability during long periods of high-load operation.
standardization & serialization
This series of motors covers a stator outer diameter range from 210mm to 1220mm, with torque ranging from 60 Nm to 50,000 Nm.
It is very suitable for high-performance applications such as five-axis machine tools, direct-drive cradle turntable and direct-drive pendulum in the machine tool industry, providing strong power support for modern industrial manufacturing.
